Control, Drag Chain & Servo Category
servo 105
Hits：
390
Time：
2015-08-27 10:58:48
I want to order
Description
Application
The cable is used as a connecting cable between servo controller and motors in automation process and production lines in dry or wet environments.
Technical data
Temperature range
flexing -5 ℃ to + 80 ℃
fixed installation -40 ℃ to + 70 ℃
Nominal voltage 0.6/1 kV
Test voltage 4000 V
Specific insulation resistance
> 20 GOhm x cm
Minimum bending radius
flxed 4 x cable diameter
flexing 15 x cable diameter

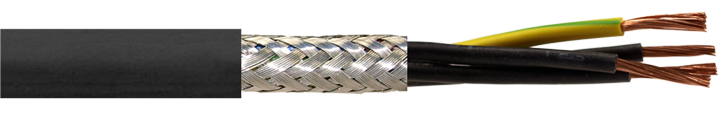

Cable structure
Fine strands of bare copper wires
Core insulation: Polyethylene (PE)
Cores twisted
Al-foil
Tinned copper wire braiding
PVC sheath
Properties
Its low capacity design allows longer cable lengths between the frequency converter and motor
In dry, wet and damp interiors
The black version can also be used outdoors in direct UV rays. Direct burial in the ground is also possible.
Flame retardant (IEC 60332-1-2)
