Application

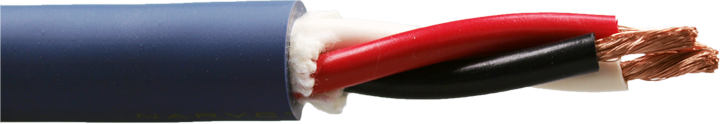

Superflex P600 cable is an extremely flexible power cable to be used in the drag chain application. It’s suitable to be used under the shift and bending stresses in the machines; it’s also suitable to be used as a mobile connecting cables for the electrical equipments.
Technical data
Extremely flexible power cable for
drag chain application
Temperature range
-40 ℃ to + 80 ℃
Nominal voltage 600 V
Minimum bending radius
flexing 6 x cable diameter
fixed installation 4 x cable diameter
Cable structure
Tinned copper, fine wire, extremely flexible
ETFE core insulation
Color-coded cores
Green-yellow earth core (3 cores and above)
Filler and tape
Optional screen: 85% coverage of tinned copper braiding
Sheath: PUR
Properties
High property of alternating bending strength
Long life durabilities due to low friction-resistance
Better chemical resistance
Oil resistance
High resistant to mechanical strain
UV and ozone resistance
Tear and abrasion resistance
Suitable for drag chain application
