Control, Drag Chain & Servo Category

	servo 104 Hits：455 Time：2015-08-27 10:58:48 I want to order

Description

Application

The cable is used as a connecting cable between servo controller and motors in automation process and production lines in dry or wet environments.

Technical data

Temperature range

flexing -40 ℃ to + 80 ℃

fixed installation -50 ℃ to + 80 ℃

Nominal voltage 0.6/1 kV

Test voltage 4000 V

Specific insulation resistance

> 20 GOhm x cm

Minimum bending radius

flxed 4 x cable diameter

flexing 7.5 x cable diameter

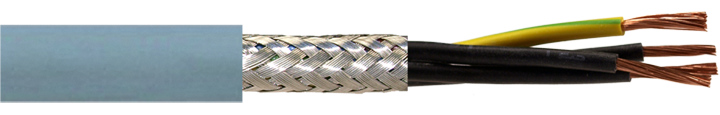

Cable structure

Extra fine strands of plain copper wires (Class 6)

Core insulation: based on TPE

Cores twisted in extremely short lay length

Tape

Tinned copper braid

Polyurethane sheath (PUR)

Properties

Its low capacity design allows longer cable lengths between the frequency converter and motor

Oil resistant

Halogen-free and flame retardant (IEC 60332-1-2)

Low adhesive surface

Designed for up to 5 million bending change cycles in the power chain
