Control, Drag Chain & Servo Category

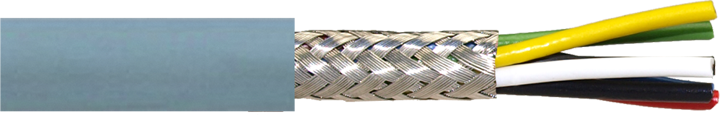

Servo 101
Hits：
518
Time：
2015-08-27 10:58:48
I want to order
Description
Application
The cable is used as a connecting cable between servo controller and motors in automation process and production lines in dry or wet environments.
Technical data
Temperature range
flexing -5 ℃ to + 80 ℃
fixed -40 ℃ to + 80 ℃
Nominal voltage
Supply cores: 0.6/1 kV
Control core pairs: 250 V
Specific insulation resistance
> 20 GOhm x cm
Minimum bending radius
fixed 6 x cable diameter
flexing 20 x cable diameter
Cable structure
Fine strands of bare copper wires
Core insulation: PVC
Control pairs 0.34 mm² color coded, from 0.5 mm²
black with consecutive imprinted numbering.
Control pair screened with Al foil and tinned
copper wires braiding
The model with one control pair is without Al foil.
PVC outer sheath
Properties
Stationary application
Occasional flexing
In dry, damp or wet interiors under medium mechanical load conditions
Outdoor use only with UV protection and in accordance with the temperature range.
Flame retardant (IEC 60332-1-2)
