Application
The cable is used as a connecting cable between servo controller and motors in automation process and production lines in dry or wet environments.
Technical data
Temperature range
flexing -0 ℃ to + 80 ℃
fixed installation -40 ℃ to + 80 ℃
Nominal voltage
IEC: power cores: 0.6/1 kV
Control cores: 300 V
UL: with control pairs: 600 V
without control pairs: depends
on its final application
Test voltage
Cores: 4000 V
Control cores: 750 V
Specific insulation resistance
> 20 GOhm x cm
Minimum bending radius
flxed 4 x cable diameter
flexing 12 x cable diameter

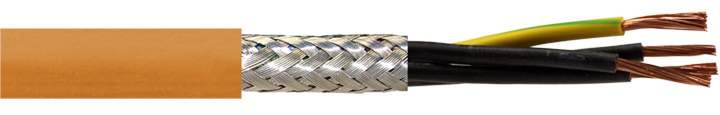

Cable structure
Extra fine strands of plain copper wires (Class 6)
Core insulation: PVC
Depending on design, cores together, without/with one or with two double screened control core pairs, twisted together in short lay length
Tape
Tinned copper braid
Polyurethane sheath (PUR)
Properties
Designed for up to 5 million bending change cycles in the power chain
Abrasion and cut resistant
Oil resistant
Flame retardant acc. IEC 60332-1-2 & CSA FT1
