Control, Drag Chain & Servo Category

	Servo 100 Hits：462 Time：2015-08-27 10:58:48 I want to order

Description

Application

The cable is used as a connecting cable between servo controller and generators in automation process and production lines in dry or wet environments.

Technical data

Temperature range

flexing -40 ℃ to + 75 ℃

fixed -50 ℃ to + 80 ℃

Nominal voltage 48 V

Test voltage 1000 V

Specific insulation resistance

> 20 GOhm x cm

Minimum bending radius

fixed 4 x cable diameter

flexing 12 x cable diameter

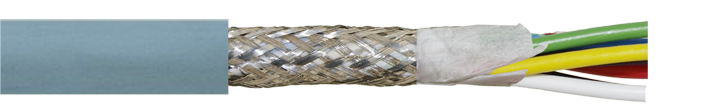

Cable structure

Extra fine strands of plain copper wires (Class 6)

Core insulation: TPE

Cores twisted in short lay lengths

Tinned copper screen braiding or as wrapping(with drain wire)

Tape

Polyurethane sheath (PUR)

Properties

Designed for up to 5 million bending change cycles in the power chain

Abrasion and cut resistant

Oil resistant

Flame retardant according to IEC 60332-1-2

Flexible down to -40 °C
