Application
These cables are designed for flexible uses and free movements under medium mechanical stress. The PUR jacket enables the cable to be with the good abrasion and tear resistant features, making them suitable to be used in the machinery, tool making and plant industry.
Technical data

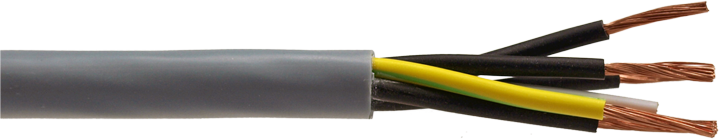

Special PUR control cable
Temperature range
flexing
-40 ℃ to + 80 ℃ (up to +100℃ for short periods)
Nominal voltage
300/500 V up to 1 mm2
450/750 V as of 1,5 mm2
Test voltage
2000 V up to 1 mm2
2500 V as of 1.5 mm2
Minimum bending radius
flexing 10 x cable diameter
fixed installation 5 x cable diameter
Cable structure
Bare copper, fine wire conductors
PUR core insulation
color coded to DIN VDE 0293-308 and as 5 of 6 cores number coded
For two cores: brown, blue
Green-yellow earth core in the outer layer (3 cores and above)
PUR outer jacket
High flexibility at low temperature
High abrasion resistance
Resistant to
Oils and fats;
Non-alcoholic fuels and kerosene;
Atmospheric influences, UV-radiation;
Oxygen and ozone;
Microbes and rotting;
Sea and waste water, vibrations.
