Application
These cables are designed for flexible uses and free movements under medium mechanical stress. The PUR jacket enables the cable to be with the good abrasion and tear resistant features, making it suitable to be used in the machinery, tool making and plant industry.
Technical data
Special PUR cables adapted to
DIN VDE 0245, 0281
Temperature range
flexing -5 ℃ to + 80 ℃
fixed installation -40 ℃ to + 80 ℃
Nominal voltage 300/500 V
Test voltage 4000 V
Minimum bending radius
flexing 7.5 x cable diameter
fixed installation 4 x cable diameter

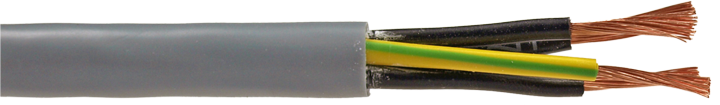

Cable structure
Bare copper, fine wire conductors
Special PVC core insulation
Black cores with continuous white numbering according to DIN VDE 0293
Special full-polyurethane outer jacket
Properties
Resistant to
UV-radiation, oxygen, ozone and
hydrolysis microbes
