Application
These cables are designed for data and control signaling in electronics, machines, computer systems, etc. The dense screening offers a strong protection against interference to ensure accurate transmission of signals. The PUR jacket enables the cable to be with the good abrasion and tear resistant features, making it suitable to be used in the machinery, tool making and plant industry.
Technical data
Special polyurethane sheathed cable
Temperature range
flexing -5 ℃ to + 80 ℃
fixed installation -40 ℃ to + 80 ℃
Nominal voltage 300/500 V
Test voltage 3000 V
Minimum bending radius
flexing 10 x cable diameter
fixed installation 5 x cable diameter

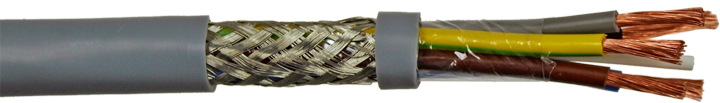

Cable structure
Bare copper conductor
Core insulation of special PVC
Black cores with continuous white numbering according
Green-yellow earth core in the outer layer (3 cores and above)
Separating foil
Tinned copper braided screening, coverage approx. 85%
Core wrapping from fleece guarantees good stripping capability
PUR outer sheath
Resistant to
UV-radiation;
Oxygen;
Ozone;
Microbes.
