Application
These cables are suitable for use under medium mechanical stress for household appliances in damp conditions, e.g. refrigerators, washing machines, etc.
Technical data
PVC-control cables to DIN VDE0281 part 5 and IEC 60227-5, HD 21.5 S3
Temperature range
flexing -5 ℃ to + 70 ℃
fixed installation -40 ℃ to + 70 ℃
Nominal voltage 300/500 V
Test voltage 2000 V
Minimum bending radius
flexing 7.5 x cable diameter

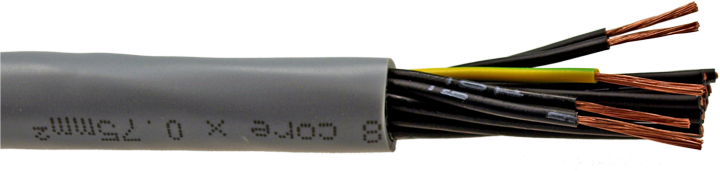

Cable structure
Bare copper, fine wire conductors
PVC core insulation
Cores color coded to DIN VDE 0293-308
1x green-yellow earth core incl.
Green-yellow earth core, 3 cores and above
PVC outer jacket
Properties
PVC self-extinguishing and flame retardant IEC 60332-1
