Application
These cables are suitable for use in small appliances under low mechanical stress, such as connection in household appliances, e.g. kitchen devices, lightings, office equipment, etc.
Technical data
PVC-control cables to DIN VDE 0281 part 5 and IEC 60227-5, HD 21.5 S3
Temperature range
flexing -5 ℃ to + 70 ℃
fixed installation -40 ℃ to + 70 ℃
Nominal voltage 300/300 V
Test voltage 2000 V
Minimum bending radius
flexing 7.5 x cable diameter

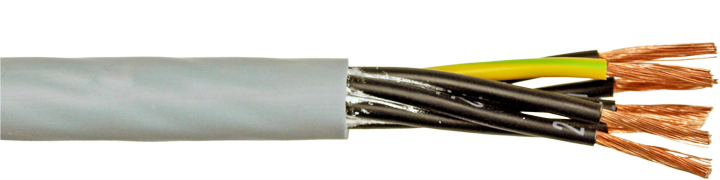

Cable structure
Bare copper, fine wire conductors
PVC core insulation
Cores color coded to DIN VDE 0293-308
6 and more cores number coded
1x green-yellow earth core incl.
Green-yellow earth-core, 3 cores and above
PVC outer jacket
Properties
PVC self-extinguishing and flame retardant IEC 60332-1
