Application
These cables are designed for flexible uses and free movements under medium mechanical stress. They are also used as control and connecting cables to machines, tooling machinery, conveyor belts and production lines. Applications under tensile stress or forced movements or open air conditions are not recommended.
Technical data
Control cable, special PVC with oil resistant outer jacket to DIN VDE 0281 part 13, HD 21.13S1 and IEC 60227/74
Temperature range
flexing -5 ℃ to + 70 ℃
fixed installation -40 ℃ to + 70 ℃
Nominal voltage 300/500 V
Test voltage
core/core 2 kV, 5 min
core/screen 2 kV, 5 min
Minimum bending radius
flexing 10 x cable diameter
fixed installation 5 x cable diameter

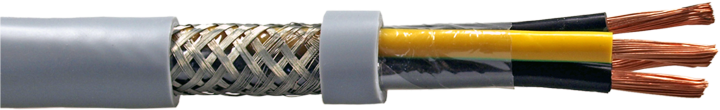

Cable structure
Bare copper, fine wire stranded conductor
Special PVC core insulation
Black cores with white figure imprint to DIN VDE 0293
Green-yellow earth core in the outer layer (3 cores and above)
Special PVC outer jacket
Properties
PVC self-extinguishing and flame retardant
Oil resistant to HD/EN 60811-2-1
