Application
The cable is designed to connect actuators, sensors, and switching to the DeviceNet™ on the Allen Bradley DeviceNet™ system. Several sheathing options are available for different installation environments.
Technical data
Cable weight: 67.0 kg/km
Copper weight: 35.0 kg/km
Minimum bending radius for laying: 110.0 mm
Temperature range: -20 °C to +80 °C

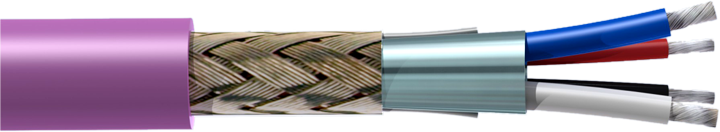

Fixed installation, indoor 1 x 2 x AWG 24 + 1 x 2 x AWG 22
Data pair conductor: tinned copper (AWG 24)
Power pair conductor: tinned copper (AWG 22)
Data pair insulation: foam-skin-PE
Power pair insulation: PVC/PE
Data pair core color: blue, white
Power pair core color: red, black
Shielding for each pair: Al-PET
Total shielding: tinned copper braiding and drain wire
Outer sheath material: PVC/LSOH/PUR
Cable external diameter: 6.9 mm
Electrical data
Characteristic impedance:
120 Ohm +/- 10%
Conductor resistance:
90.0 Ohm/km
Insulation resistance:
0.20 GOhm x km
Mutual capacitance:
39.8 nF/km nom.
Test voltage: 2.0 KV
Attenuation:
125 kHz <0.95 dB/100m
500 kHz <1.64 dB/100m
Standard:
ODVA DeviceNet
