Incorporating a power and data pair, it is suitable for use in Allen Bradley DeviceNet™ system.
Several sheathing options are available for different installation environments.
Temperature Range: -20 °C to +80 °C

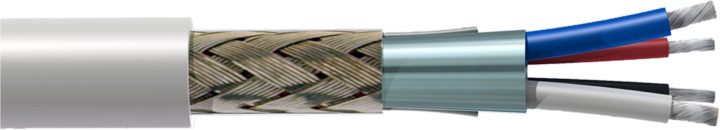

Cable structure
Fixed installation, indoor 1 x 2 x AWG 18 + 1 x 2 x AWG 15
Data pair conductor: tinned copper (AWG 18)
Power pair conductor: tinned copper (AWG 15)
Data pair insulation: foam-skin-PE
Power pair insulation: PVC/PE
Data pair core color: blue, white
Power pair core color: red, black
Shielding for each pair: Al-PET
Total shielding: tinned copper braiding and drain wire
Outer sheath material: PVC/LSOH/PUR
Cable external diameter: 12.2 mm
Electrical data
Characteristic impedance:
120 Ohm +/- 10%
Conductor resistance:
22.6 Ohm/km
Insulation resistance:
0,20 GOhm x km
Mutual capacitance: 39.8 nF/km
Test voltage: 2.0 KV
Attenuation
125 kHz <0.42 dB/100m
500 kHz <0.81 dB/100m
Standard:
ODVA DeviceNet
