Application
KNX/EIB bus cable is suitable to transmit bus signal for intelligent systems in buildings. It can also be used to control blinds, lighting, heating, indicator boards, ventilation, etc.
Technical data
Peak working voltage
(not for power applications): 150 V
Minimum bending radius:
Fixed installation: 10 x cable diameter
Test voltage (core/core): 250 V
Temperature range: -30 °C to +70 °C

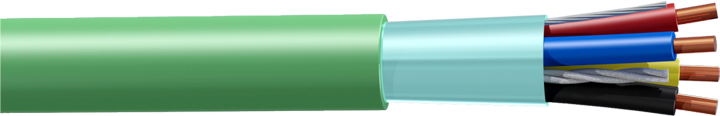

Cable structure
Conductor: solid bare copper 0.8 mm
Insulation: PE/PVC
Color code: black, yellow, white, red
Assembly: 4 single-wired cores twisted to a star quad.
COMBI version with additional power supply 3 x 1.5 mm²
Shielding: Tinned copper drain wire and Al foil
Sheath: PVC/LSZH
Color: Green
Properties
Serial data transmission
KNX/EIB bus cable has been tested with
4 kV (1 min) in a water bath
