Application
Interbus cable is used for the application areas of material handling and process automation.
Technical data
Peak working voltage
(not for power applications): 250 V
Minimum bending radius
Flexing: 15 x cable diameter
Test voltage (core/core): 1500 V
Temperature range: -30°C to +70°C

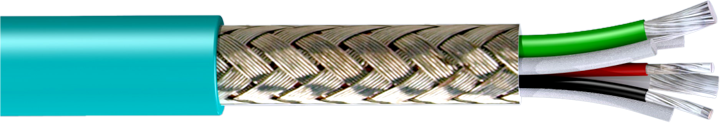

Cable structure
Conductor: highly flexible bare copper conductor
Insulation: Polyolefin
Color code:
Sec. 0.25 mm2: DIN 47100 (Data) white-brown;
yellow-green;pink/grey
Sec. 1 mm2: Blue-Red-Yellow/Green (Power)
Braiding: Tinned copper (coverage: 80%)
Sheath: PUR
For highly flexible applications
Data and control in one cable
Reliable signal transfer
