Application
The cable is mainly used as the digital audio link for the wiring of audio equipments. The flexible feature makes it suitable for both fixed and mobile application.
Technical data
Operating temperature: -30 °C to +70 °C
Minimum bending radius:
Fixed station: 5 x outer diameter
Mobile station: 10 x outer diameter
Impedance: 110 Ohm±10
Nominal capacitance 800 / 1000 Hz: 46 pF / m
Attenuation(dB/100 m) :
0.1 MHz : 0.55
1 MHz : 2.10
4 MHz : 5.80
10 MHz : 10.50
20 MHz : 16.00
Next (dB) :
0.1 MHz : 70 - 80
1 MHz : 60 - 65
4 MHz : 53 - 55
10 MHz : 48 - 48
20 MHz : 45 - 45

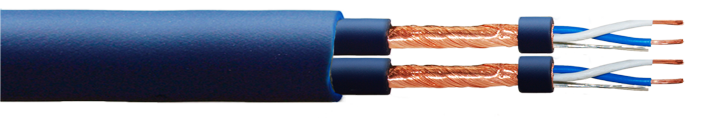

Cable structure
Conductors: 7 x 0.20 mm bare copper
Insulation: foam PE
Drain wire pair: 7 x 0.20 mm tin plated copper
Shielding of pairs: bare copper spiral shielding
Identification of pairs : by number
Pair sheath: PVC
Sheath: PVC
Product advantages
Highly effective shielding against electrical interferences.
Highly flexible and easy to coil/uncoil thanks to ultra supply PVC jacket
