Audio Category

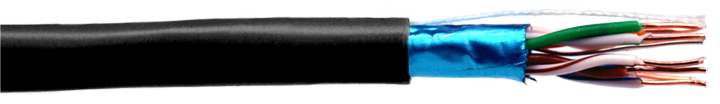

	Audio LAN Cable Hits：453 Time：2015-08-27 14:50:49 I want to order

Description

Application

The cable is mainly used as the digital audio and video link for the wiring of audio and video equipments. The flexible feature makes it suitable for both fixed and mobile application.

Technical data

Operating temperature: - 30 °C +70 °C

Bend radius:

Fixed station: 35 mm

Mobile station: 70 mm

Resistance of conductors: 132 Ohm / km

Impedance (1 to 100 MHz): 100 Ohm ±15

Attenuation(dB/100 m) :

1 MHz : 3.00

10 MHz : 9.80

100 MHz : 33.00

Cable structure

Conductors: flexible bare copper – AWG 26
