Application
These wiring cables are used for measurement and control purposes in tooling machinery, conveyor belts and production lines, for plant installations, air conditioning and in steel production plants and rolling mills.
Technical data
Special PVC control cables Adapted to DIN VDE 0262/12.95 and DIN VDE 0281 part 13, with insulation thickness for 1 kV type
Temperature range
flexing -5 ℃ to + 80 ℃
fixed installation -40 ℃ to + 80 ℃
Nominal voltage 0.6/1 kV
Test voltage 4000 V
Minimum bending radius
flexing 7.5 x cable diameter
fixed installation 4 x cable diameter

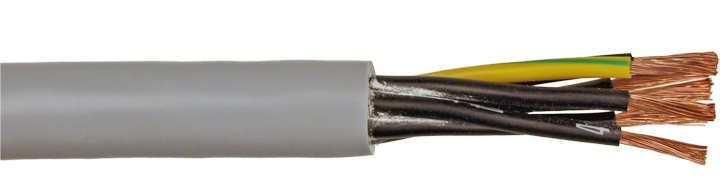

Bare copper, fine wire conductors
Special PVC core insulation
Black cores with white figure imprints or color coded
Green-yellow earth core in the outer layer (3 cores and above)
Special PVC outer sheath
Properties
Extensively oil resistant, chemical resistance
PVC self-extinguishing and flame retardant IEC 60332-1
