Application
These cables are designed for flexible uses and free movements under medium mechanical stress. Applications under tensile stress or forced movements are not recommended.
Technical data
Special PVC control cables
Temperature range
flexing -5 ℃ to + 80 ℃
fixed installation -40 ℃ to + 80 ℃
Nominal voltage 450/750 V
Test voltage 4000 V
Minimum bending radius
flexing 7.5 x cable diameter
fixed installation 4 x cable diameter

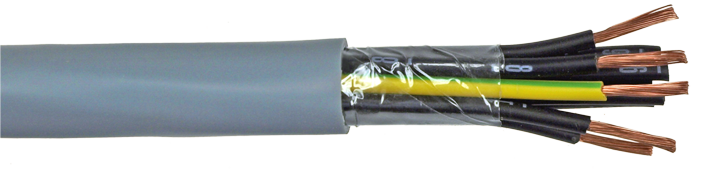

Cable structure
Bare copper, fine wire conductors
Special PVC core insulation
Black cores with white figure imprints or color coded
Green-yellow earth core in the outer layer (3 cores and above)
Cores stranded in layers with optimal lay-length
Special PVC outer sheath
Extensively oil resistant
Chemical resistance
PVC self-extinguishing and flame retardant IEC 60332-1
