Application
Highflex S30 cable is a highly flexible signal cable to be used in the drag chain application. It’s suitable to be used under the shift and bending stresses in the machines; it’s also suitable to be used as a mobile connecting cables for the electrical equipments.
Technical data
Flexible power cables for high-speed movement application; UL 20276
Rated temperature 80 ℃
Nominal voltage 30 V
Minimum bending radius
fixed 6 x cable diameter
flexing 6 x cable diameter

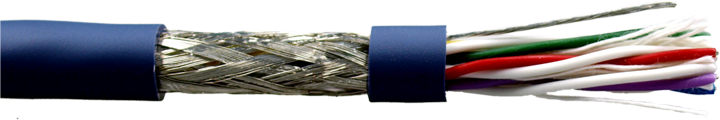

Cable structure
Bare copper, fine wire, highly flexible
Flexible PVC core insulation
Optional filler and tape
Screen: 85% coverage of copper braiding
Sheath: PVC
Properties
Left/right bending resistance
Oil resistance
Twist resistance
45° left/right vibration resistance
Suitable for high speed movement application
