Application

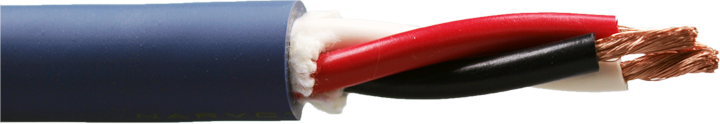

Highflex P600 cable is a highly flexible power cable to be used in the drag chain application. It’s suitable to be used under the shift and bending stresses in the machines; it’s also suitable to be used as a mobile connecting cables for the electrical equipments.
Technical data
Highly flexible power cables for high-speed movement application
Temperature range
-5 ℃ to + 75 ℃
Nominal voltage 600 V
Minimum bending radius
flexing 6 x cable diameter
fixed installation 6 x cable diameter
Cable structure
Bare copper, fine wire, highly flexible
Flexible PVC core insulation
Color-coded or number-coded cores
Filler and tape
Optional screen: 85% coverage copper braiding
Sheath: PVC
Properties
Heat resistance
Left/right bending resistance
Oil resistance
45° left/right vibration resistance
Twist resistance
Suitable for high-speed movement application
