Application

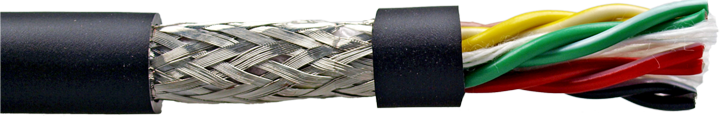

Flex S30 cable is a flexible signal cable to be used in the drag chain application. It’s suitable to be used under the shift and bending stresses in the machines; it’s also suitable to be used as a mobile connecting cables for the electrical equipments.
Technical data
Flexible power cables for high-speed
movement application; UL 20276
Rated temperature 80 ℃
Nominal voltage 30 V
Minimum bending radius
fixed 6 x cable diameter
Tinned copper, fine wire, flexible
Flexible PVC core insulation
Optional filler and tape
Optional screen: 80% coverage of
tinned copper braiding
Sheath: PVC
Properties
Left/right bending resistance
Oil resistance
Twist resistance
45° left/right vibration resistance
Suitable for low speed movement application
