Application

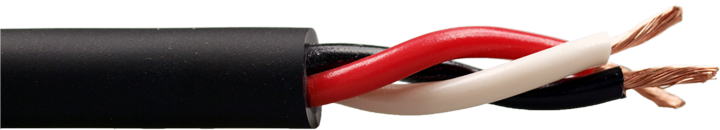

Flex P600 cable is a flexible power cable to be used in the drag chain application. It’s suitable to be used under the shift and bending stresses in the machines; it’s also suitable to be used as a mobile connecting cables for the electrical equipments.
Technical data
Flexible power cables for low-speed movement application
Rated temperature 105 ℃
Nominal voltage 600 V
Minimum bending radius
Fixed installation 4 x cable diameter
Bare copper, fine wire, highly flexible
Flexible PVC core insulation
Color-coded or number cores
Optional tape
Sheath: PVC
Properties
Heat resistance
Left/right bending resistance
Oil resistance
Twist resistance
45° left/right vibration resistance
Suitable for low-speed movement application
