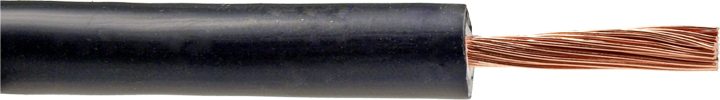

 | Wind Power CableHits：411 Time：2015-08-27 08:17:16 |
|---|
|
NO. Cores x
Cross-sec.
mm2
|
Conductor
Diameter
mm
|
Cable
Diameter
mm
|
Current
Capacity
A
|
|
1 x 1.5
|
1.5
|
5.7-7.1
|
28
|
| 1 x 2.5 | 1.95 | 6.3 -7.9 | 38 |
| 1 x 4 | 2.5 | 7.2 - 9.0 | 51 |
| 1 x 6 | 3.0 | 7.9 - 9.8 | 66 |
| 1 x 10 | 3.9 | 9.5 - 11.9 | 92 |
| 1 x 16 | 5.0 | 10.8 - 13.4 | 120 |
| 1 x 25 | 6.4 | 12.7 - 15.8 | 163 |
| 1 x 35 | 7.7 | 14.3 - 17.9 | 205 |
| 1 x 50 | 9.2 | 16.5 - 20.6 | 247 |
| 1 x 70 | 11.0 | 18.6 - 23.3 | 311 |
| 1 x 95 | 12.5 | 20.8 - 26.0 | 375 |
| 1 x 120 | 14.2 | 22.8 - 28.6 | 438 |
| 1 x 150 | 15.8 | 25.2 - 31.4 | 509 |
