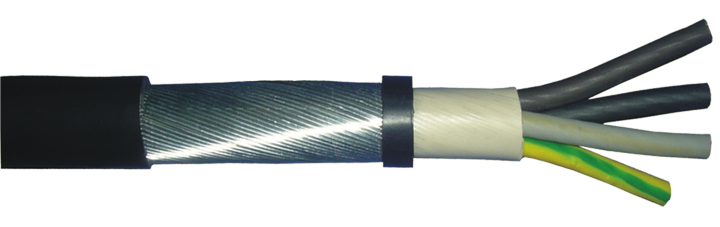

 | BS5467Hits：418 Time：2015-08-27 08:17:16 |
|---|
| AWG-No. |
NO. Cores x
Cross-sec.
mm2
|
Insulation Diameter mm |
Outer Diameter mm |
Cable Weight kg/km |
| 16 | 2 x 1.5 | 2.8 | 12.0 | 293 |
| 16 | 3 x 1.5 | 2.8 | 12.9 | 325 |
| 16 | 4 x 1.5 | 2.8 | 13.7 | 368 |
| 16 | 5 x 1.5 | 2.8 | 14.2 | 380 |
| 16 | 7 x 1.5 | 2.8 | 15.6 | 464 |
| 16 | 8 x 1.5 | 2.8 | 16.7 | 500 |
| 16 | 10 x 1.5 | 2.8 | 18.5 | 750 |
| 16 | 12 x 1.5 | 2.8 | 20.1 | 792 |
| 16 | 19 x 1.5 | 2.8 | 23.2 | 1030 |
| 16 | 27 x 1.5 | 2.8 | 27.7 | 1420 |
| 16 | 37 x 1.5 | 2.8 | 30.3 | 1750 |
| 16 | 48 x 1.5 | 2.8 | 32.5 | 2100 |
| 6 | 2 x 16 | 6.9 | 20.0 | 900 |
| 6 | 3 x 16 | 6.9 | 22.0 | 1100 |
| 6 | 4 x 16 | 6.9 | 23.6 | 1350 |
| 6 | 5 x 16 | 6.9 | 25.9 | 1750 |
| 6 | 7 x 16 | 6.9 | 28.5 | 2150 |
