Application
ASI bus cable is used to connect Actuator-Sensor-Interface components, and it allows transmitting data and power at the same time. The TPE version and PUR version are with oil-resistant and abrasion-resistant feature.
Technical data
Peak working voltage (not for power
applications) 32 V
Conductor resistance
max. 13.7 Ohm/km
Minimum bending radius
Fixed installation: 3 x cable diameter
Flexing: 6 x cable diameter
Test voltage (core/core) 1500 V
Temperature range
TPE: -40 °C to 105 °C;
PUR: -40°C to 85 °C;
PVC: -30°C to 105 °C

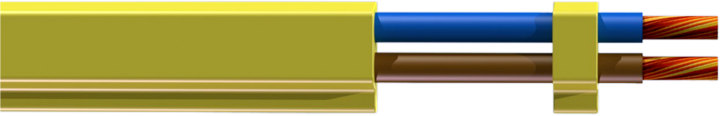

Cable structure
Conductor: finely stranded bare or
Tinned copper, 1.5 mm²
Core insulation: blue and brown
Sheath: PVC, TPE or PUR
Sheath color: yellow or black
Standard:
ASI is standardized Europe-wide in EN 50295 and
internationally in IEC 62026-2.
