Application
The fire resistant cable is for fixed installation in fire alarm and emergency lighting circuits where circuit integrity must be maintained; its low smoke and zero halogen features makes it suitable for installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.
Technical data
Temperature range: -40 °C to 90 °C
Rated voltage: 300/500 V
Test voltage: 5000 V
Minimum bending radius:
6 x cable diameter

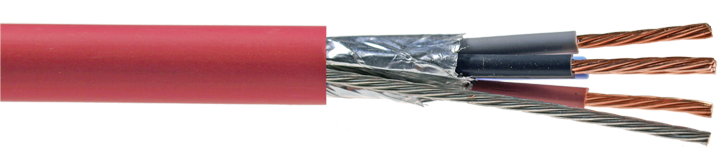

Cable structure
Plain annealed copper solid (1.0 - 2.5 mm2)
or stranded (4.0 mm2) complying with B6360
class 1 or class 2.
Insulation: Silicone rubber
Screen: Al-PET foil + drain wire
Sheath: LSOH
Standard
BS 7629-1
BS 6387 CWZ
BS 5839-1 CLAUSE 26.2
BS EN 50200 PH 30
BS 8434-1
