Application
UL 1430 Cross-linked PVC (XLPVC) hook-up wires are generally used as the connecting wire for the internal wiring of the electronic and electrical equipment, such as home appliances, motor, lightings. It can be used with the protective tubes when necessary.
AWM = Appliance Wiring Material
UL = Underwriters Laboratories Inc. (USA)
UL File NO. E334907
Technical data

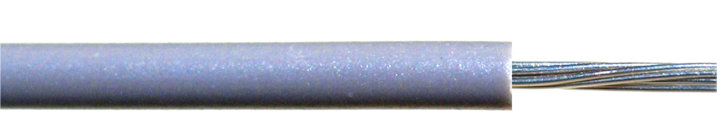

XLPVC single core to UL-Style 1430
Rated temperature 105 ℃
Nominal voltage 300 V
Bending radius
once approx. 5 x cable diameter
multiple approx. 10 x cable diameter
Cable structure
30 AWG - 16 AWG solid or stranded silver plated, tinned or bare copper
XLPVC core insulation
Properties
Conditionally resistant to
Oils
Solvents
Acids
Lyes
XLPVC self-extinguishing and flame retardant, test method to UL VW-1
