Application
UL 1028 PVC hook-up wires are generally used as the connecting wire for the internal wiring of the electronic and electrical equipment, such as home appliances, motor, lightings. It can be used with the protective tubes when necessary.
AWM = Appliance Wiring Material
UL = Underwriters Laboratories Inc. (USA)
UL File NO. E334907
Technical data

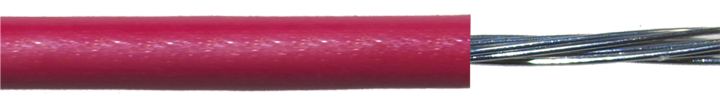

PVC single core to UL-Style 1028
Temperature range 105 ℃
Nominal voltage 600 V
Bending radius
once approx. 5 x cable diameter
multiple approx. 10 x cable diameter
Cable structure
Solid or Stranded, tinned or bare copper conductor 22-6AWG
PVC core insulation according to UL subject 758, UL 1581, CSA 22.2
Properties
Conditionally resistant to
Oils
Solvents
Acids
Lyes
PVC self-extinguishing and flame retardant, test method to UL VW-1
