Application
These cables are designed for flexible uses and free movements under medium mechanical stress. The low smoke, zero halogen and flame retardant features make the cables suitable to be used where fire, smoke emission and toxic fumes create a potential threat to life and equipment.
Technical data
Halogen-free flexible control cable
Temperature range
flexing -15 ℃ to + 70 ℃
fixed installation -40 ℃ to + 70 ℃
Nominal voltage 300/500 V
Test voltage 2000 V
Minimum bending radius
flexing approx. 12.5 x cable diameter
fixed installation approx. 4 x cable diameter

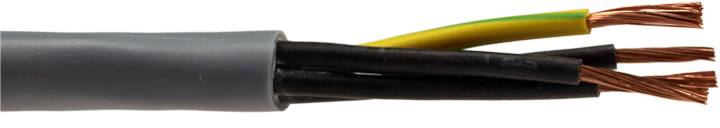

Cable structure
Bare copper, fine wire conductors
Core insulation of halogen-free compound
Black cores with white continuous numbering to DIN VDE 0293
Green-yellow earth core in the outer layer (3 cores and above)
Halogen-free sheath compound
Outer jacket color grey
LSZH = Low Smoke Zero Halogen-free.
Flame test to IEC 60332-1
