Application
These cables are designed for data and control signaling in electronics, machines, computer systems, etc. The dense screening offers a strong protection against interference to ensure accurate transmission of signals. The low smoke, zero halogen and flame retardant features make the cables suitable to be used where fire, smoke emission and toxic fumes create a potential threat to life and equipment.
Technical data
Halogen-free core flexible control cable adapted to DIN VDE 0281 part 14 and DIN VDE 0281 part 13
Temperature range
flexing -15 ℃ to + 70 ℃
fixed installation -40 ℃ to + 70 ℃
Nominal voltage 300/500 V
Test voltage 2000 V
Minimum bending radius
flexing approx. 12.5 x cable diameter
fixed installation approx. 4 x cable diameter

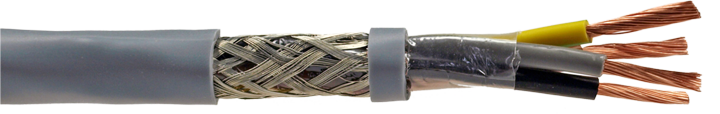

Cable structure
Bare copper, fine wire conductors
Core insulation of halogen-free compound
Black cores with white continuous numbering to DIN VDE 0293
Green-yellow earth core in the outer layer (3 cores and above)
Cores laid up in layers with optimal lay-length
Separating layer
Screen braid of tinned copper wires, coverage approx. 85%
Jacket color grey
LSZH = Low Smoke Zero Halogen-free.
