Application
These wiring cables are used for measurement and control purposes in tooling machinery, conveyor belts and production lines, for plant installations, air conditioning and in steel production plants and rolling mills. These cables are designed for flexible uses and free movements under medium mechanical stress in dry or moist conditions.
Technical data
Special control cables with thermoplastic PVC insulation on the basis of DIN VDE 0262/12.95 and DIN VDE 0281 part 13
Temperature range
flexing -5 ℃ to + 80℃
fixed installation -40 ℃ to + 90℃
Nominal voltage 0.6/1 kV
Test voltage 4000 V
Breakdown voltage min. 8000 V
Insulation resistance
min. 20 MOhm x km
Minimum bending radius
flexing 10 x cable diameter
fixed installation 5 x cable diameter

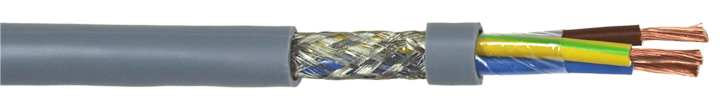

Cable structure
Bare copper, fine wire conductors
Special PVC core insulation
Black cores with sequential numbering imprinted in white or color coded
PVC-insulated inner sheath
Braided screen of tinned Cu wires, coverage approx. 85%
Special PVC outer sheath
Extensively oil resistant
PVC self-extinguishing and flame retardant IEC 60332-1
