Application
CAN bus cable is used to connect controller area to network components. It secures transmission characteristics of 1 Mbit/s up to 40 m and 50 Kbit/s up to 1 km. The flexible feature makes it suitable to be used in industrial environments, machinery equipment and harsh environments.
Technical data
Peak working voltage (not for power
applications) 30 V
Conductor resistance
max. 57.5 Ohm/km
Minimum bending radius
Fixed installation: 8 x cable diameter
Test voltage (core/core): 2000 V
Temperature range: -40°C to 75 °C

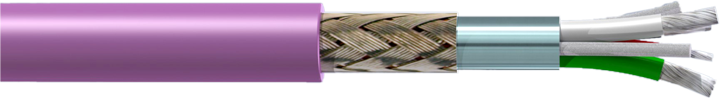

Cable structure
Conductor: stranded 7-wire bare copper conductor
Insulation: PE, XLPE or FEP
Color coded in accordance with DIN 47100
White/brown (two cores)
green/yellow and white/brown (four cores)
Braiding: Tinned copper
Sheath: PVC
Color: violet (RAL 4001)
Standard:
CAN standard and customers requirements
