Power/Energy/Special Category

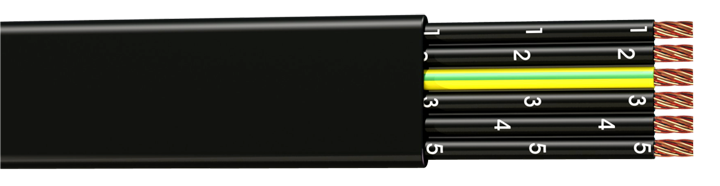

	Flat Cable Hits：391 Time：2015-08-27 08:17:16 I want to order

Description

Application

Flat cables are used mainly as trailing cable for crane installations, floor conveyer system and self control units.

Technical data

Temperature range

flexible -5 ℃ to +70 ℃

fixed installation -40 ℃ to 80 ℃

Nominal voltage

up to 1mm² 300/500 V

≥ 1.5mm² 450/750V

Test voltage

up to 1mm² 2000 V

≥ 1.5mm² 2500 V

Minimum bending radius

10 x cable diameter

Cable structure

Conductor: bare copper

Insulation: PVC

Application

Flat cables are used mainly as trailing cable for crane installations, floor conveyer system and

self control units.

Cores laying parallel

Green-yellow earth core

PVC/PUR/LSZH/Rubber Sheath

Properties

Extensive oil resistant

Chemical resistant

Extremely small bending radius

High Flexibility

Minimum waste of space

AWG-no.	No. Cores x Cross-sec. mm²	Outer Diameter mm	Copper weight kg/km	Cable Weight kg/km
18	4 G 0.75	4.3 x 12.6	28.8	90
18	5 G 0.75	4.3 x 16.1	36.0	115
18	6 G 0.75	4.3 x 19.4	43.2	141
18	9 G 0.75	4.3 x 26.4	64.8	198
18	10 G 0.75	4.3 x 30.1	72.0	224
18	12 G 0.75	4.3 x 33.8	84.4	258
18	16 G 0.75	4.3 x 44.4	115.2	340
18	18 G 0.75	4.3 x 49.2	129.6	380
