	Medium Duty Rubber Cable Hits：382 Time：2015-08-27 08:17:16 I want to order

Description

Application

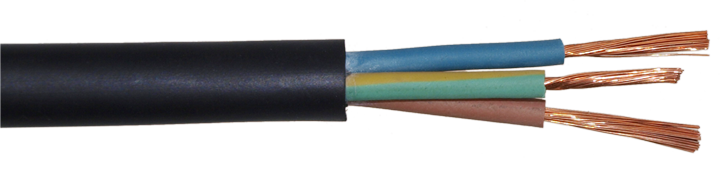

Medium Duty Rubber Cable medium duty rubber cable is used as a power supplied cables. It can be used either in dry or damp areas and suitable for outdoor application.

Technical data

Specific insulation resistance

1 GOhm x cm

Temperature range

-25 ℃ to +60 ℃

Nominal voltage 300/500 V

Test voltage 2000 V

Minimum bending radius

6 x cable diameter

G = with protective conductor

X = without protective conductor

Cable structure

Bare copper wire according to HAR

Core insulation: rubber

Sheath: rubber

NO. Cores x Cross-sec. mm²	Outer Diameter mm	Copper Weight kg/km	Cable Weight kg/km
2 x 0.75	5.7 - 7.4	14.4	80
3 G 0.75	6.2 - 8.1	21.6	95
4 G 0.75	6.8 - 8.8	30.0	105
2 x 1.00	6.1 - 8.0	19.0	95
3 G 1.00	6.5 - 8.5	29.0	115
