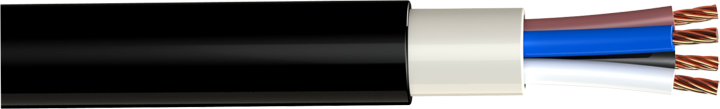

 | NYY Power CableHits：402 Time：2015-08-27 08:17:16 |
|---|
| AWG-No. |
NO. Cores x Cross-sec. mm2 |
Outer Diameter mm |
Copper Weight kg/km |
Cable Weight kg/km |
| 12 | 1 x 4 | 9.0 | 38.0 | 115.0 |
| 10 | 1 x 6 | 9.5 | 58.0 | 135.0 |
| 8 | 1 x 10 | 10.0 | 96.0 | 179.0 |
| 6 | 1 x 16 | 11.0 | 154.0 | 245.0 |
| 4 | 1 x 25 | 12.0 | 240.0 | 360.0 |
| 2 | 1 x 35 | 13.0 | 336.0 | 470.0 |
| 1 | 1 x 50 | 15.0 | 480.0 | 620.0 |
| 2/0 | 1 x 70 | 16.5 | 672.0 | 810.0 |
| 3/0 | 1 x 95 | 19.0 | 912.0 | 1110.0 |
| 4/0 | 1 x 120 | 20.5 | 1152.0 | 1360.0 |
| 16 | 2 x 1.5 | 11.2 | 29.0 | 175.0 |
| 14 | 2 x 2.5 | 12.0 | 48.0 | 215.0 |
| 12 | 2 x 4 | 14.0 | 77.0 | 295.0 |
| 10 | 2 x 6 | 15.0 | 115.0 | 370.0 |
| 8 | 2 x 10 | 16.5 | 192.0 | 495.0 |
| 6 | 2 x 16 | 18.5 | 307.0 | 670.0 |
| 4 | 2 x 25 | 23.5 | 480.0 | 960.0 |
| 16 | 3 x 1.5 | 11.5 | 43.0 | 195.0 |
| 14 | 3 x 2.5 | 12.5 | 72.0 | 250.0 |
| 12 | 3 x 4 | 14.0 | 115.0 | 340.0 |
| 10 | 3 x 6 | 15.0 | 173.0 | 430.0 |
| 8 | 3 x 10 | 17.0 | 288.0 | 590.0 |
| 6 | 3 x 16 | 19.0 | 461.0 | 820.0 |
| 4 | 3 x 25 | 24.0 | 720.0 | 1320.0 |
| 2 | 3 x 35 | 25.0 | 1008.0 | 1450.0 |
| 1 | 3 x 50 | 26.5 | 1440.0 | 1850.0 |
| 16 | 4 x 1.5 | 12.0 | 58.0 | 230.0 |
| 14 | 4 x 2.5 | 13.5 | 96.0 | 300.0 |
| 12 | 4 x 4 | 15.0 | 154.0 | 410.0 |
| 10 | 4 x 6 | 16.5 | 230.0 | 520.0 |
| 8 | 4 x 10 | 18.5 | 384.0 | 730.0 |
| 6 | 4 x 16 | 21.5 | 614.0 | 1045.0 |
| 4 | 4 x 25 | 26.0 | 960.0 | 1640.0 |
| 2 | 4 x 35 | 27.5 | 1344.0 | 1760.0 |
| 1 | 4 x 50 | 30.0 | 1920.0 | 2350.0 |
| 16 | 5 x 1.5 | 13.0 | 72.0 | 270.0 |
| 14 | 5 x 2.5 | 14.5 | 120.0 | 360.0 |
| 12 | 5 x 4 | 16.5 | 192.0 | 490.0 |
| 10 | 5 x 6 | 18.0 | 288.0 | 600.0 |
| 8 | 5 x 10 | 20.0 | 480.0 | 890.0 |
| 6 | 5 x 16 | 22.5 | 768.0 | 1255.0 |
| 4 | 5 x 25 | 28.0 | 1200.0 | 1960.0 |
| 2 | 5 x 35 | 34.0 | 1680.0 | 2400.0 |
| 1 | 5 x 50 | 40.0 | 2400.0 | 3500.0 |
| 16 | 7 x 1.5 | 15.5 | 101.0 | 310.0 |
| 14 | 7 G 2.5 | 16.5 | 168.0 | 450.0 |
| 12 | 7 G 4 | 18.5 | 269.0 | 640.0 |
| 10 | 7 x 6 | 20.0 | 403.0 | 850.0 |
| 8 | 7 x 10 | 23.5 | 672.0 | 1200.0 |
| 16 | 10 x 1.5 | 18.0 | 144.0 | 380.0 |
| 14 | 10 G 2.5 | 19.5 | 240.0 | 520.0 |
| 16 | 12 x 1.5 | 19.0 | 173.0 | 420.0 |
| 14 | 12 G 2.5 | 20.5 | 288.0 | 600.0 |
| 16 | 14 x 1.5 | 20.0 | 202.0 | 470.0 |
| 14 | 14 G 2.5 | 21.0 | 336.0 | 680.0 |
